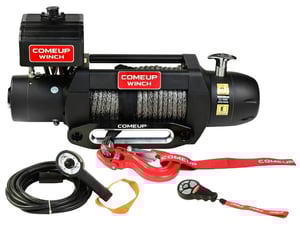

ComeUp Seal Gen2

Description:
12V DC severe duty winch rated at 9,500 lb pulling meets or exceeds your expectations.

Heavy duty series wound motor equipped with thermal switch alters when motor over-heating.

4 equally positioned pin holes with a stainless steel ergonomic T-handle make it possible to clock in 90 degree Increments.

Water-proof remote control with thermometric LED indicator w/5 m cord

Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch

The U.S. Germany, U.K. France, etc patented mechanical cone brake outside the drum expedites heat dispersion. The greater the load on the rope, the greater amount of braking is generated by the mechanism.

Meet SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2004/108/EC.

Specifications:
Rated Line Pull 9,500 lbs or 12,600 lbs single line

Motor 5.0 hp / 3,730 w 12V Series Wound

Gear Ratio 3-Stage Planetary 159:1

Clutch (freespooling) Rotating Ring Gear

Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)

Winch Construction Aluminum Die Cast Housing with Steel Drum

Drum Size 2.5" x 9" (63.5 x 228 mm)

Control Wired 15' remote, option for wireless

Rope Type Synthetic Rope SK-75

Rope Size 3/8" x 100' (10 mm x 30.5 m)

Mounting Bolt Pattern 10" x 4.5" (254 x 114 mm)

Winch Weight 61.7 lb (28 kg)

Gross Weigh 89.1 lb (40.5 kg)

Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components

Box Dimensions 26.9" x 8.2" x 16.9" (682 x 209 x 430 mm )

Returns are subject to a 20% restocking fee and return shipping
